Procleix Xpress System
Systems

Procleix Xpress System

Ref. GRF-PROCLEIX-XPRESS-SYSTEM

Pooling and archiving is easier than ever so that you can quickly process and store whatever volume your lab needs.

Tests per card —
Packaging —
Request a Consultation Download Brochure
Contact us for product availability and technical details.

About the Product

Pooling and archiving is easier than ever so that you can quickly process and store whatever volume your lab needs.

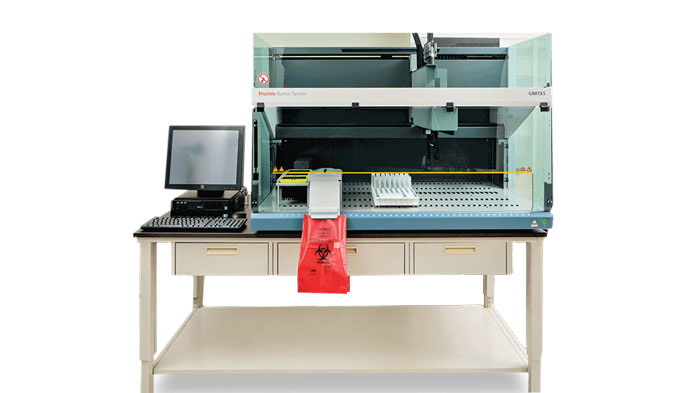

The Procleix Xpress system is a pooling and archiving instrument that transfers plasma or serum from individual samples to pool tubes for further testing and/or archiving on deep well plates.

Technical Characteristics

Sample throughput*
  • Pools of 4: 60 min or less
  • Pools of 8: 50 min or less
  • Pools of 16: 30 min or less (* Throughput time is based on a full deck.)
Sample capacity on deck**
  • 384 (pools of 4)
  • 384 (pools of 8)
  • 256 (pools of 16) (** The value given here for the maximum number of samples and master pool tubes (MPTs) assumes that the archive plate option is not enabled.)
Liquid handling arm
  • Air-driven 8-channel pipetting arm using: Pressure monitored pipetting (PMP)
  • Liquid level detection (LLD)
Archiving options 500 μL-1.6 mL, in 100 μL increments
Sample barcode types Code 128, ISBT 128, Codabar, Code 39, Interleaved 2 of 5. All symbologies can be used within the same run
Sample tube sizes 12 x 75 mm (2.9 in)13 x 100 mm (3.9 in)16 x 100 mm (3.9 in)
Pool tube sizes
  • 13 x 100 mm (3.9 in)
  • 16 x 100 mm (3.9 in)
Dimensions (W x D x H) 145 x 78 x 107 cm (57 x 31 x 42 in)
Weight 155 kg (341 lb)
Clearance requirements
  • Sides: 22.5 cm (8.9 in)
  • Front: 44 cm (17 in)
Voltage 100-120, 220-240 VAC, (-15%/+10%)
Frequency 50/60 Hz
Power 1200 VA
Operational temperature 15-30°C
Operational humidity 20-85% at 30°C or below
Altitude Maximum 2000 m (6562 ft) above sea level
Noise output <85 dBA (61.3 dBA; sound pressure, measured at a distance of 1 m from the instrument)
Cyber security CISCO firewall, protects the instrument PC from cyber security threats
Operating system Windows 10 or higher

Key Features

  • Streamlined workflow: Seamlessly integrate Procleix systems and get started immediately.
  • Precision pipetting: Quickly process a range of pool sizes and archive the volumes you need.
  • Intuitive interfacing: Easily pre-configure pool sizes and volumes with a touchscreen interface.

Technical Information

No technical information available for this product.

Compatibility

No compatibility information available for this product.

Packaging

No packaging information available for this product.
