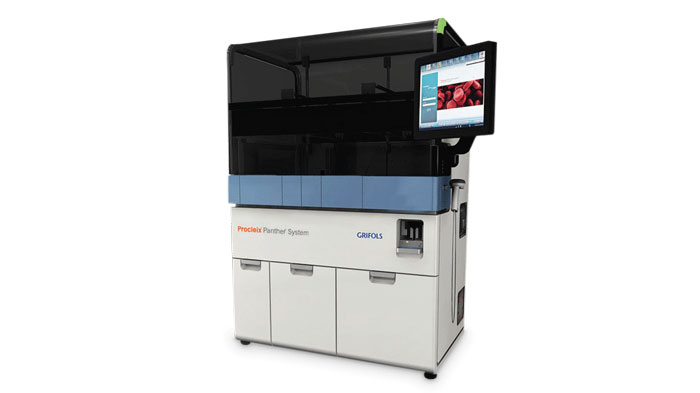

Procleix Panther System
Ref. GRF-PROCLEIX-PANTHER-SYSTEMA comprehensive NAT screening solution in a very compact footprint.
Tests per card
—
Packaging
—
Contact us for product availability and technical details.
About the Product
A comprehensive NAT screening solution in a very compact footprint.
The Procleix Panther system combines full automation with versatility and smart operations for efficient NAT processing of blood and plasma. More donations are tested every year* with a Procleix system than any other.
*Grifols, data on file, November 2022.
Key Features
- Smart design: Quickly access reportable results while maximizing lab space and minimizing operator interaction.
- Simple operation: Streamline operations with quick and easy installation and training, user-friendly software and automated maintenance.
- Versatile capabilities: Maximize workflow flexibility with continuous loading samples and full solution integrations.
Technical Characteristics
| Sample throughput | Standard: 3.5 hr to first result; 5 results every 5 min thereafter. IDT: 275 results in 8 hr; 500 results in 12 hr |
|---|---|
| Sample capacity | 120 sample tubes (15 tubes per rack x 8 racks; with continuous sample loading ability) |
| Sample barcode types | Code 39, Code 93, Code 128 (ISBT 128), NW7, Interleaved 2 of 5, Codabar, JAN-13, UPC |
| Reagent capacity | 1 reagent kit per lane; 4 lanes available to load any combination of assay reagents; 2000 test on-board capacity; Continuous reagent kit loading ability |
| Waste capacity | Process 750 tests before unloading liquid and solid waste |
| Dimensions (W x D x H) | Instrument: 122 x 81.5 x 175 cm (48 x 32 x 69 in). UPS (optional): 21.4 x 41.0 x 32.5 cm (8.4 x 161.1 x 12.8 in). Note: touchscreen monitor adds 45.5 cm (18 in) to width |
| Clearance requirements | Width: 183 cm, minimum (6 ft; recommended space is 244 cm [8 ft]). Vertical: 198 cm (6.5 ft). Front: 91.4 cm (3 ft). Note: touchscreen monitor adds 45.5 cm (18 in) to width |
| Weight | Instrument: 363 kg (800 lb). UPS: 34.5 kg (76 lb) |
| Voltage | Instrument: 100-240 VAC (±10%; single phase). UPS: 110 V-20 amp circuit (dedicated), specified to operate at a minimum of 15 amps (dedicated). UPS: 220 V-10 amp circuit (dedicated), specified to operate at 7.5 amps (dedicated) |
| Frequency | 50/60 Hz, single phase |
| Power | Instrument and ancillaries: 1400 W (peak; 13 amps @ 100 VAC, 5.4 amps @ 240 VAC) |
| Operational temperature | 15-30°C (59-86°F) |
| Operational humidity | 20-85% (relative, non-condensing) |
| Operational altitude | ≤2000 m (6562 ft; above sea-level) |
| Heat dissipation | 550 W (1878 BTU/hr; during steady state) |
| Drain output | None; waste fluids drain to removable containers |
| Noise output | <70 dBA |
