Tissue biopsy

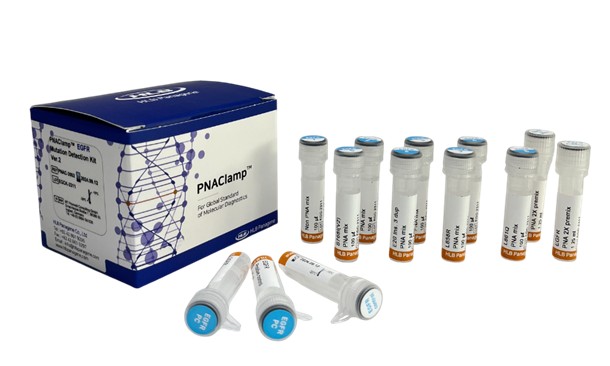

PNAClamp™ Mutation Detection Kit EGFR (ver.2)

Ref. PNAC-3002

Lung cancer is categorized into two types; non-small cell lung cancer (NSCLC) with the 80~85% frequency and small cell lung cancer with the 15~20% frequency. Epidermal growth factor receptor (EGFR) is expressed on the surface of epidermal cells and has the tyrosine kinase activity.

Tests per card —
Packaging 25 tests
Contact us for product availability and technical details.

About the Product

Lung cancer is categorized into two types; non-small cell lung cancer (NSCLC) with the 80~85% frequency and small cell lung cancer with the 15~20% frequency. Epidermal growth factor receptor (EGFR) is expressed on the surface of epidermal cells and has the tyrosine kinase activity. Overexpression of EGFR is found only in NSCLC and may lead to signal transduction system in cells by causing cell proliferation, tumor-induced neoangiogenesis (formation of new blood vessels) and transition induction. The EGFR tyrosine kinase inhibitor (TKI), gefinitib (Iressa, AstraZenca) or erlotinib (Tarceba, Roche), is effective to inhibit the growth of cancer cells and leads to death of cancer cells and suppression of new blood vessels in lung cancer tissue. Especially, some specific mutations in the ATP-binding domain of EGFR gene have strong positive correlation with the response rate of EGFR-TKIs. Furthermore, NSCLC patients with the EGFR mutations are reported to be more effective to EGFR-TKI and show prolonged survival rate of patients with lung cancer. Therefore, detection of the EGFR mutation is becoming an important prognostic biomarker for drug response, and efficient detection of the EGFR mutation is expected to be highly helpful for increase of survival rate of patients with lung cancer in targeted therapy.

Total 40 EGFR mutations can be detected.

Technical Characteristics

Exon 18 - G719X 3
Exon 19 - E19del 26
Exon 20 - T790M 1
Exon 20 - S768I 1
Exon 20 - E20ins 6
Exon 21 - L858R 2
Exon 21 - L861Q 1
Total mutations 40
Detection limit 1% LOD with 25 ng wild/mutant type mixed DNA
Running time within 3 hours
Procedure sample preparationExtraction of Total DNAAmplification of target DNA by Real-Time PCRAnalysis of Result

Key Features

  • High sensitivity and specificity even with small amount of DNA (1% LOD with 25 ng wild/mutant type mixed DNA)
  • Real-Time PCR based ready-to-use kit
  • Short running time (within 3 hours)

Technical Information

No technical information available for this product.

Compatibility

Compatible sample type:

  • FFPE tissue
  • Fresh tissue
  • Biopsy tissue

Compatible Real-Time PCR machine:

  • CFX96 (Bio-Rad)
  • LightCycler 480II (Roche)
  • ABI7500 (Thermo Fisher Scientific)
  • ABI7900HT (Thermo Fisher Scientific)
  • Rotor-Gene Q (Qiagen)

Packaging

25 tests
