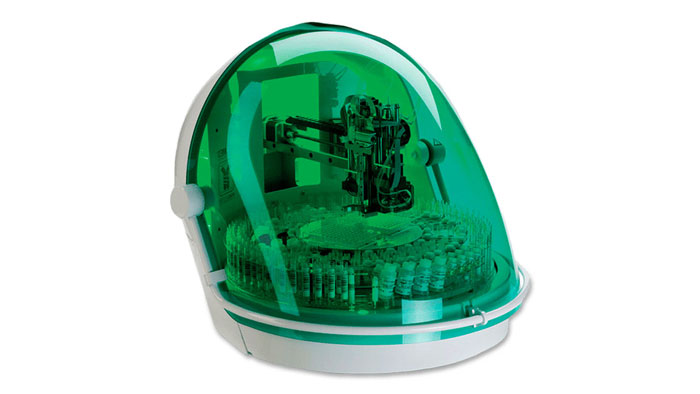

HELMED Automated System for IFA
Ref. GRF-HELMED-AUTOMATED-SYSTEM-FOR-IFAAutomate IFA processing and incubate slides from room temperature to 45ºC with this immunofluorescence open system for both infectious serology and autoimmunity slides.
Tests per card
—
Packaging
—
Contact us for product availability and technical details.
About the Product
Automate IFA processing and incubate slides from room temperature to 45ºC with this immunofluorescence open system for both infectious serology and autoimmunity slides.
Reduce operator steps on IFA processing and maximize your throughput with HELMED's reagent capacity and practicability. Automate your IFA processing steps to ensure operator consistency and eliminate transcription errors with a built-in barcode reader and LIS communication all in a compact system with multiple options to maximize your lab space.
Technical Characteristics
| Slide capacity | Similar to ELISA, except solid phase uses nitrocellilose membrane |
|---|---|
| Test capacity | Up to 4 different tests with 4 different substrates and 4 different conjugates per slide |
| Sample capacity |
|
| Sample tubes |
|
| Sample microtubes | Yes, 2 mL (0.07 fl oz) |
| Sample identification | Built-in multi-type barcode reader for sample detection and identification |
| Sample and reagent support | Customized multi-format extractable racks |
| Slide support |
|
| Sample dilution capacity |
|
| Dilution fluid | User choice of wash solution or dedicated diluent solution in the carousel |
| Positions available for IF sample dilution | 192 (performed in 2 x 96 MTP) |
| Pipetting station |
|
| Level detection | Continuous level tracking by conductivity |
| Precision | CV <3% @ 5 μL; CV <1% @ 10 μL |
| Minimum sample volume pick-up | 1 μl |
| Minimum sample volume required | 50 μL |
| Reagents capacity | Several reagent racks can be combined in the outer ring, each of them with capacity for 16 reagent and control bottles |
| Wash solutions | 2 different wash solutions |
| Wash type | Free slide and well wash. programming (well-by-well wash) |
| Incubator | For slides and MT programmable from RT to 40°C |
| Software requirements |
|
| LIS link |
|
| Modularity | Up to 3 HELMED systems controlled by a single PC |
| Programming | User-friendly software interface including an intuitive slide and test designer that supports different slide thickness, different well formats, multiple substrates in the same slide, multiple sample dispensing points, and multiple number of well rows within the same slide |
| Certifications | CE mark and FDA approved |
| Dimensions (W × D × H) | 57 × 62 × 75 cm (22.4 × 24.4 × 29.5 in) |
| Weight | 25 kg (55.12 lb) |
| Voltage | 100-240 V |
| Frequency | 50/60 Hz |
| Power |
|
Key Features
- Faster processing: With three independent needles and rings, increase your processing speed and improve your results. Load and run more tests in just five minutes.
- Higher Capacity: Automate up to 20 slides and four different tests per run with four different substrates. Combine several reagent racks in the outer ring, each with a capacity of up to 16 reagent bottles and fit AESKUSLIDES reagents, calibrators, and control vials directly into their corresponding positions.
- Streamlined: Automate your processes to increase tracebility and consistency. Standardize IFA processes with flexible protocol programming and automate detection and scanning of sample tube ID's to reduce human operating error.
