Clinical Chemistry

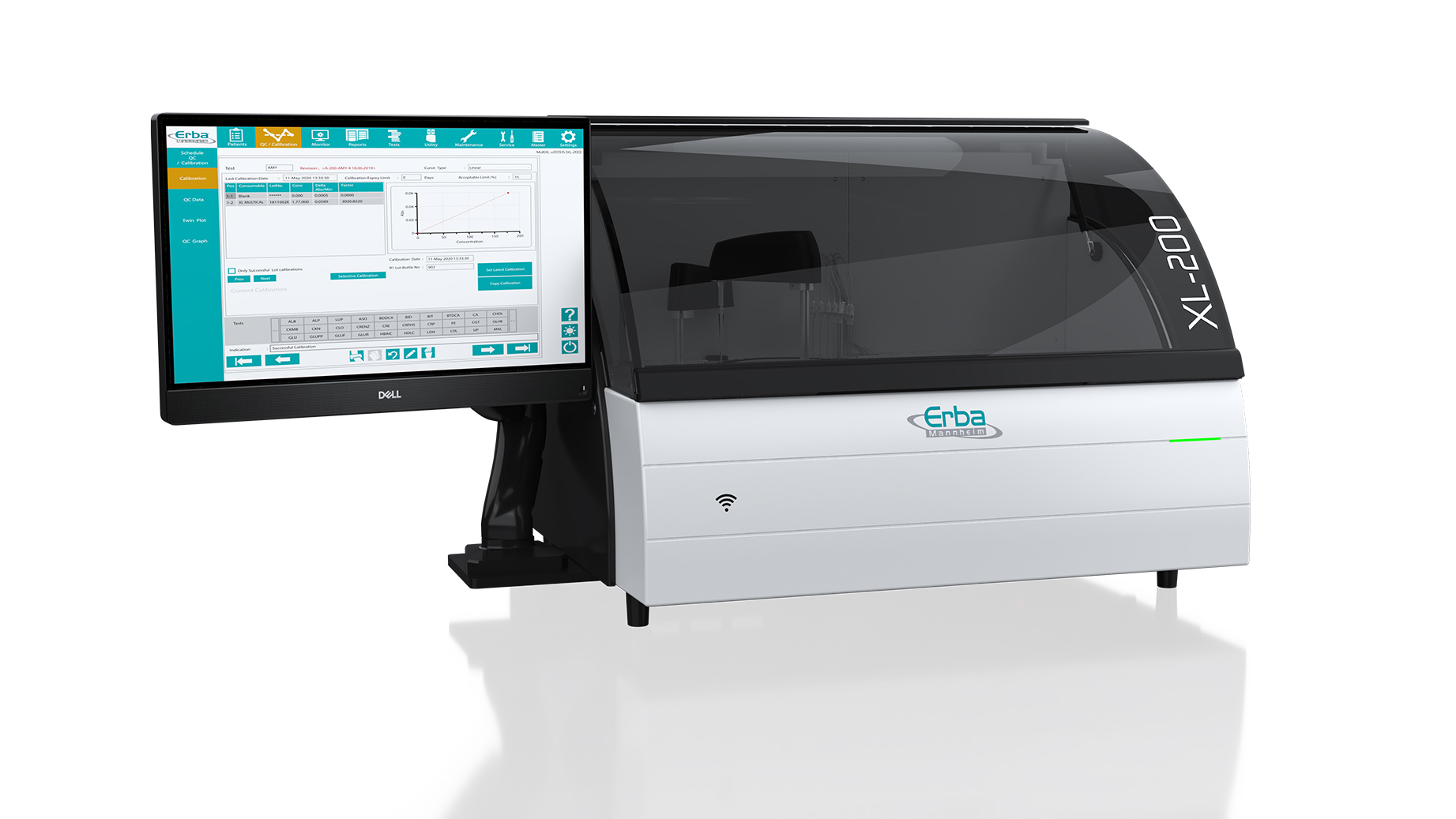

Erba XL 200
Ref. ERB-XL-200TOP OF THE RANGE BENCHTOP CLINICAL CHEMISTRY ANALYSER
Tests per card
—
Packaging
—
Contact us for product availability and technical details.
About the Product
TOP OF THE RANGE BENCHTOP CLINICAL CHEMISTRY ANALYSER
Designed for growing and mid-size laboratories with high expectations. Manufactured with the highest standards to provide accurate and precise results in a cost effective way.
Technical Characteristics
| Throughput | 200 tests/h |
|---|---|
| Throughput with ISE | 400/tests/h |
| Probes | x1 (R+S) |
| Optical Module | Static (8 filters (340-700 nm)) |
| Cuvettes | 45 Hard Glass, 5mm |
| Wash Station | 8-step |
| Reagent Pos | 50 |
| Sample Pos | 39 |
| Power Consumption | 600 VA |
| Size (WxDxH)(mm) | 810 x 700 x 600 |
| Weight (kg/lb) | 120 / 265 |
Downloads & Media
Key Features
- Constant throughput of 200 tests/hour, 400 with optional ISE module
- Hard glass reaction cuvettes & Automatic cuvette blank measurement
- Advanced QC module & Real time monitoring of reaction
- User friendly software interface & Inventory management
- Dispensing of samples and reagents: Sample volume: 2-70 μl (in 0,1 μl step)
- Dispensing of samples and reagents: Reagent volume: R1 50-300 μl (in 1 μl step),R2 10-200 μl (in 1 μl step)
- Dispensing of samples and reagents: Multifunctional probe equipped with liquid -level sensor and crash detector
- Dispensing of samples and reagents: Auto-dilution of samples and calibrators
- Economy: Minimum reaction volume: 180 μl
- Economy: Reusable glass reaction cuvettes
- Mixing system: Independent stirrer
- Mixing system: 3 user selectable mixing speeds
- Quality control: 4 levels of control material can be used
- Quality control: Levey-Jennings graphs
- Quality control: Twin Plot diagrams for monitoring of systematic and random error
- Reaction unit: 45 reusable hard glass cuvettes
- Reaction unit: Possibility of replacement of individual cuvettes
- Reaction unit: Wash station – cuvette rinsing and drying in 8 steps
- Reaction unit: Automatic cuvette blank measurement before analysis
- Reaction unit: Reaction temperature 37°C ± 0,2°C
- Sample tray: 39 positions for samples, blanks, standards, calibrators, controls and ISE solutions
- Sample tray: Primary tubes 5, 7 and 10 ml and cups
- Sample tray: STAT sample with priority in any position
- Sample tray: Possibility of programming up to 99 virtual trays
- Reagent tray: 50 positions, 20 ml, 50 ml reagent containers, 5 ml tube with adaptor)
- Reagent tray: Reagent compartment with Peltier/air cooler (8-12°C)
- Reagent tray: Option to use one reagent for several tests simultaneously
- Software: Convenient user interface
- Software: Connection to LIS
- Software: Statistical methods of processing results
- Software: Data export in selected format
- Measurement monitoring: Color indication of sample analysis
- Measurement monitoring: Option of monitoring the reaction in real time
- Measurement monitoring: Reagent volume monitoring
- Measurement monitoring: Informative reports on ongoing analyser status
