Clinical Chemistry

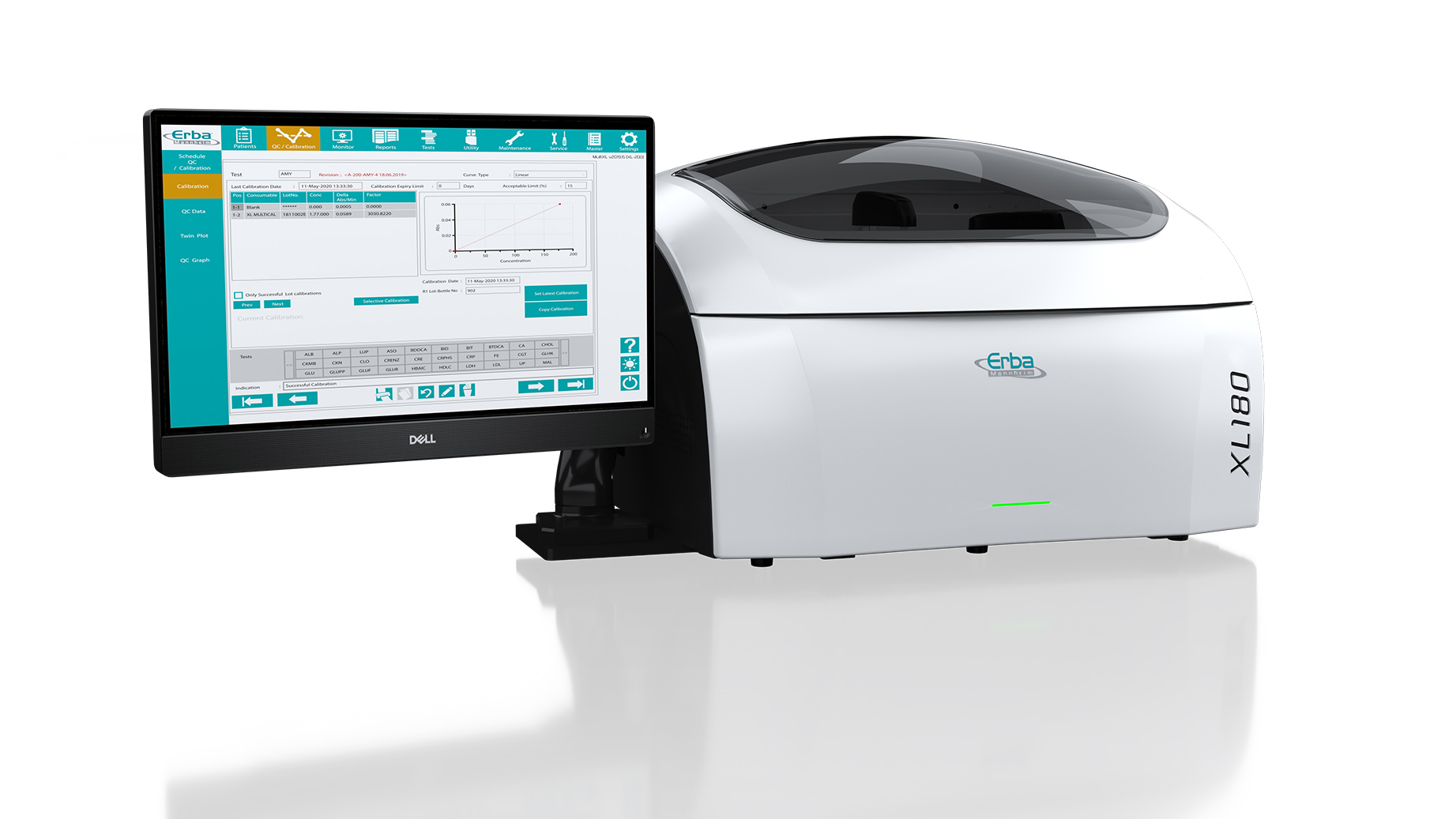

Erba XL 180
Ref. ERB-XL-180FULLY AUTOMATIC CLINICAL CHEMISTRY ANALYSER
Tests per card
—
Packaging
—
Contact us for product availability and technical details.
About the Product
FULLY AUTOMATIC CLINICAL CHEMISTRY ANALYSER
The ideal solution for small labs with increasing demand. Fully automated, random access clinical chemistry analyser.
Technical Characteristics
| Throughput | 180 tests/h |
|---|---|
| Throughput with ISE | 360/tests/h |
| Probes | x1 (R+S) |
| Optical Module | Static (8 filters (340-700 nm)) |
| Cuvettes | 120 PMMA, 5mm |
| Wash Station | single use/ reusable |
| Reagent Pos | 25 |
| Sample Pos | 15 flex & 10 |
| Power Consumption | 300 VA |
| Size (WxDxH)(mm) | 675 x 450 x 300 |
| Weight (kg/lb) | 65 / 144 |
Downloads & Media
Key Features
- Throughput: 180 tests/hour photometric, 360 tests/hour with optional ISE module
- Probe preheating & vertical crash detection & dedicated mixer with variable speed (3x levels)
- Static Photometer ranging from 340 to 700 nm & 120 semi-disposable PMMA cuvette rotor
- Inbuild Barcode Reader for samples and reagents & Auto Dilution & Auto Rerun & STAT
- Key features: Fully automated, Random access,Discrete Clinical Chemistry Analyser
- Key features: Complete system provides flexibility to program infinite protocols
- Key features: Throughput of 180 photometric tests/hour & 360 tests/hour with ISE (optional)
- Key features: Requires only 180 μl reagent volume with sapphire syringe
- Key features: Onboard cooling for reagents
- Key features: Primary tube sampling with option of sample cup
- Key features: Static photometer with 8 multi-Wavelengths ranging from 340 to 700 nm
- Key features: Probe with pre-heating facility
- Key features: Dedicated mixer with variable speed: Low, Medium and High
- Key features: Inbuilt Barcode reader for samples and reagents
- Key features: Single Use or Re-usable cuvettes (external washing)
- More information: Probe with vertical obstruction detection, liquid level sensing
- More information: Multiple assay modes: 1-Point, 2-Point, Rate-A, Rate-B, Direct Potentiometry (optional)
- More information: Multiple calculation modes such as linear, non-linear, multipoint etc.
- More information: Extensive Q.C Program Levy-Jenning curve and QC rules
- More information: Unlimited data storage
- More information: Windows operating mode with intuitive user interface
- More information: Lamp saving function enhances lamp life
- More information: Real time monitoring of reaction curve
- More information: Auto dilution and auto rerun facility
- More information: Flexibility for STAT samples
- More information: Wide test menu: routine chemistry, special chemistry,
- More information: Immunoturbidimetric tests & ISE (optional)
- More information: Direct patient reportable format and printout with user defined option
