Clinical Chemistry

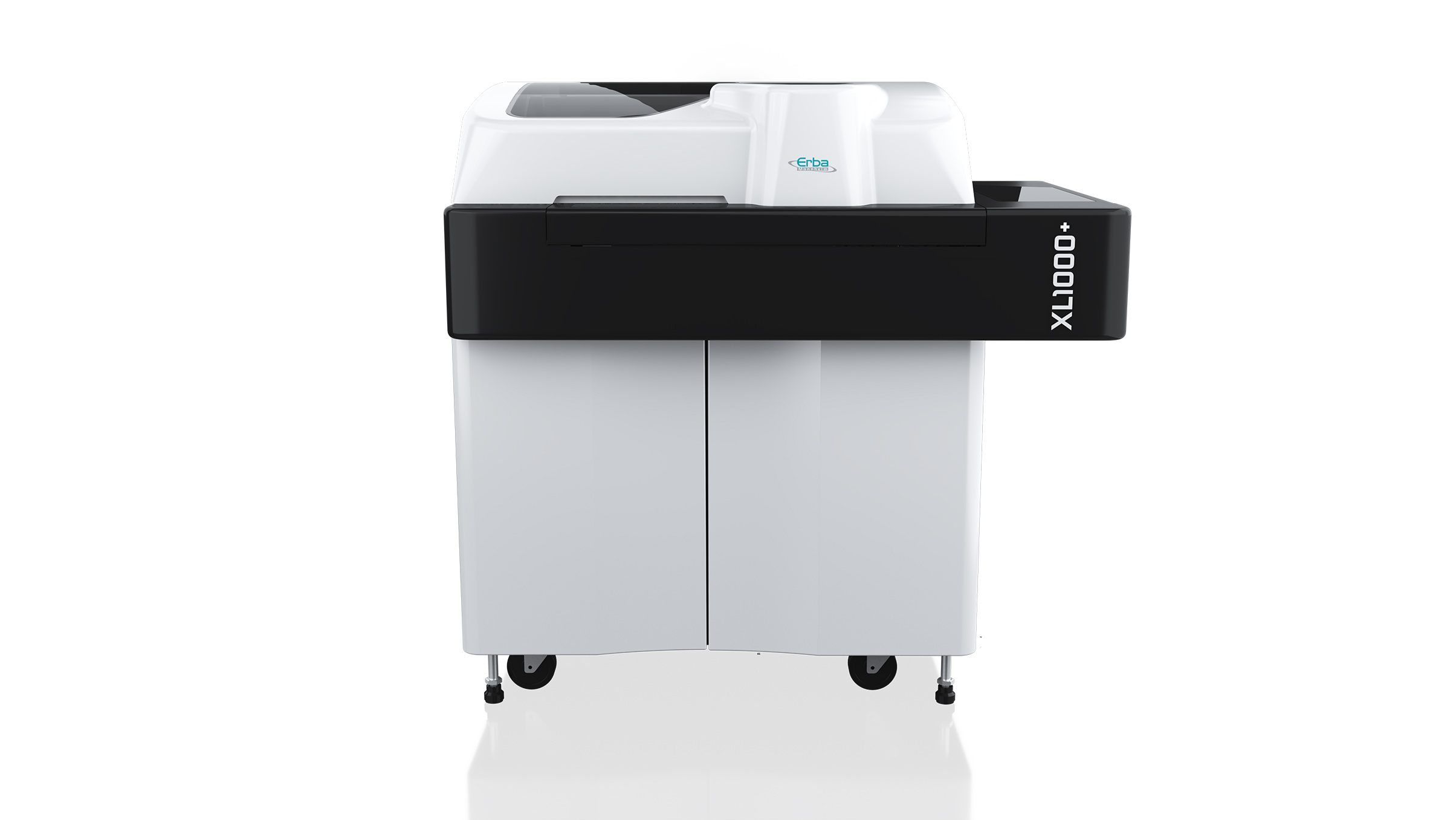

Erba XL 1000
Ref. ERB-XL-1000THE EFFICIENT AND RELIABLE SOLUTION FOR HIGH THROUGHPUT REQUIREMENTS
Tests per card
—
Packaging
—
Contact us for product availability and technical details.
About the Product
THE EFFICIENT AND RELIABLE SOLUTION FOR HIGH THROUGHPUT REQUIREMENTS
Equipped with all necessary advanced features that one expects from a high end automatic system. The perfect "workhorse" for laboratories with increased workload.
Technical Characteristics
| Throughput | 800 tests/h |
|---|---|
| Throughput with ISE | 1040 tests/h |
| Probes | x3 (R1+R2+S) |
| Optical Module | diffraction grating (x15) (340-750 nm) |
| Cuvettes | 147 Hard Glass, 5mm |
| Wash Station | 9-step |
| Reagent Pos | 86 |
| Sample Pos | 150 |
| Power Consumption | 2000 VA |
| Size (WxDxH)(mm) | 1350 x 1000 x 1250 |
| Weight (kg/lb) | 275 / 607 |
Downloads & Media
Key Features
- Throughput of 800 tests/hour photometric, 1000 with optional ISE
- Sample loading through rack system with a capacity of 150 on board samples
- Cooled carousel for calibrator, control and STAT samples
- On board capacity for 86 reagent vials and min reaction volume of 150 μL.
- Dispensing of sample and reagent: Sample volume: 2-60 μl (0.1 μl step), 70 μl with ISE
- Dispensing of sample and reagent: Reaction volume: 150 μl – 550 μl
- Dispensing of sample and reagent: 3 dispensing probes ( R1, R2/R3) equipped with liquid - level sensor and crash detector
- Dispensing of sample and reagent: Auto-dilution of samples and calibrators
- Dispensing of sample and reagent: Clot detection
- Sample autoloader: 23 racks
- Sample autoloader: 115 sample positions on automatic autoloader
- Sample autoloader: Primary tubes 5, 7 and 10 ml, vacuum system tubes
- Sample autoloader: Barcode reader for sample identification
- 2 reagent trays: 2x 43 cooled positions
- 2 reagent trays: System packs: 50 ml, 20 ml and 5 ml (adapter)
- 2 reagent trays: Barcode reader for easy identification
- Reaction tray: 147 hard glass reaction cuvettes
- Reaction tray: Mixing system with 3 speed levels
- Reaction tray: Wash station: cuvette rinsing & drying
- Reaction tray: Automatic cuvette blank measurement before analysis
- STAT tray: 45 positions
- STAT tray: Can be used for blank, controls, STAT samples
- Quality control: 4 levels of control material can be used
- Quality control: Levey-Jennigs graphs
- Quality control: Twin Plot diagrams for monitoring of systematic and random error
- Software: Convenient user interface
- Software: Connection to LIS
- Software: Programmable auto-start from sleep mode including automatic daily maintenance
- Software: Statistical methods of processing results
- Software: Data export in selected format
- Measurement monitoring: Colour indication of sample analysis
- Measurement monitoring: Option of monitoring the reaction in real time
- Measurement monitoring: Reagent volume monitoring
- Measurement monitoring: Informative reports on ongoing analyser status
