Infectious Diseases

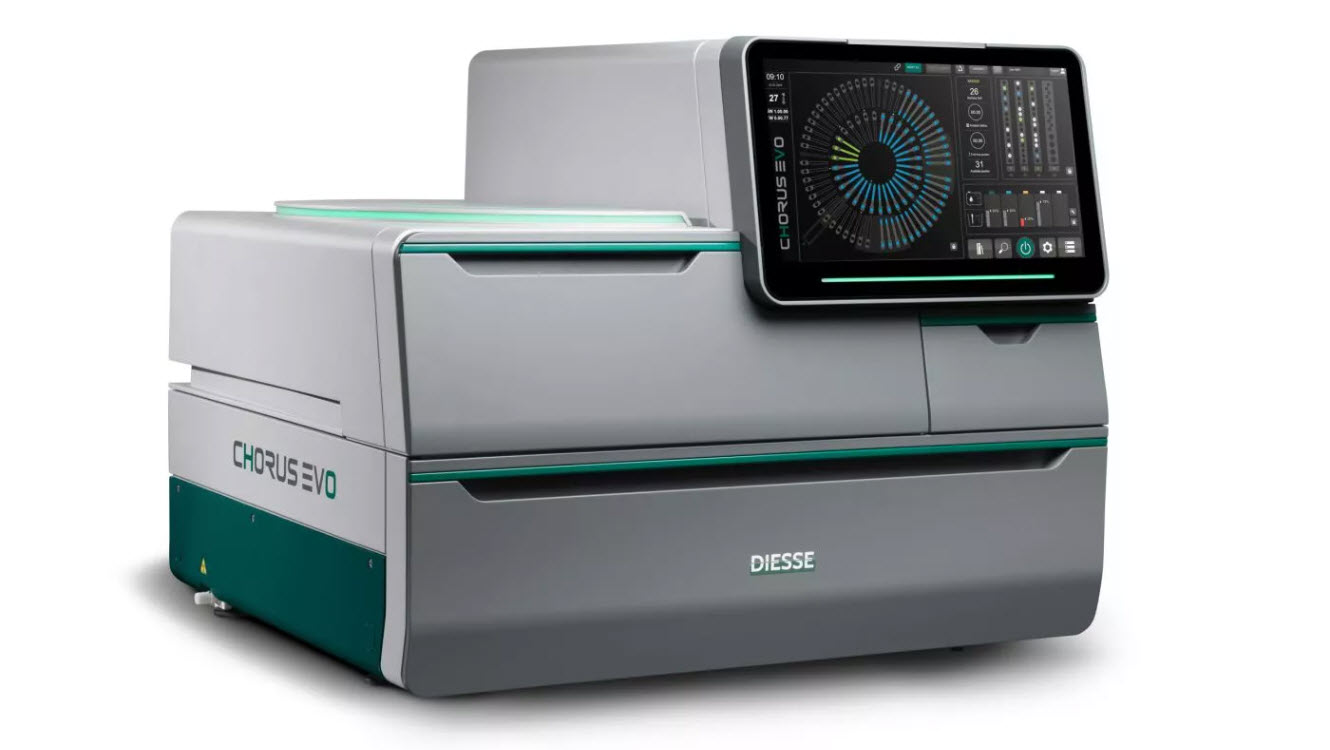

Chorus EVO
Ref. GRF-CHORUS-EVOAutomatic multi-parameter random access system for immunoassays with ready-to-use monotest devices
Tests per card
—
Packaging
—
Contact us for product availability and technical details.
About the Product
Automatic multi-parameter random access system for immunoassays with ready-to-use monotest devices
The CHORUS EVO features three detection methods: ELISA, CLIA and MACROARRAY techniques. The different types of tests, which can be performed simultaneously within the same analytical run, are tailored to consolidate routine and specialty tests along with the possibility of performing diagnostic profiles, on the same platform.
Technical Characteristics
| System Description | Random access immunoassay analyzer |
|---|---|
| Methods | ELISA, CLIA, MACROARRAY |
| Reagent Capacity | 86 MONOTEST |
| Sample Capacity | 48 samples |
| Sample Type | Serum / stool / urine / CSF |
| STAT Handling | STAT available |
| Barcode Reader | Built-in 1 D and 2D barcodes for sample tube and reagent recognition. |
| Operating System | LINUX |
| Monitor | 17" diagonal LCD touch sensitive screen |
| Consumable Capacity | Washing buffer - 2L containerWashing buffer autoimmunity - 2L containerSanitizing solution - 2L containerCleaning solution - 2L container (2x) |
| LIS Connectivity | Bidirectional |
| Operating Temperature | 15-35 ºC |
| Operating Humidity | 20-80% RH non condensing |
| Electrical | 110/230 V, 50-60 Hz |
| Dimensions (H x D x W) | 760 x 840 x 940 mm |
| Weight | 120 kg |
| Noise Level | <70 dB |
| Connection | 3 USB Host, 1 RS232C, 1 LAN |
Key Features
- Fully Automated Process: CHORUS EVO manages continuous loading of 48 samples and 86 single test devices. The analyzer performs the programmed worklist with its fully automated recognition system of samples and reagents.
- Cost-Effective: CHORUS EVO continuously monitors reagents, consumables and analytical processes. The monotest format means that there are no hidden costs or waste of reagents.
- Clinical Efficacy: With more than 150 tests available, bidirectional LIS connectivity, and active IoT features.
Technical Information
No technical information available for this product.
Compatibility
No compatibility information available for this product.
Packaging
No packaging information available for this product.
